3 Axle 40FT Gooseneck Container Chassis


Type: 3 Axles 40 ft gooseneck container chassis

Price Range: $8600-17,900

Delivery: 7-25 days

Loading capacity: 15-40 ton

Applications: transport container, refrigerated container.


Gooseneck container chassis, as known as gooseneck chassis trailer, etc. Generally used for transport ISO container in port, ship yard, routes, bridges, tunnels, transfer station, supporting multimodal transport logistics system. 40ft long fit 4 to 14 sets container locks suitable for 10′, 20′, 40′ dry container, and reefer container etc.

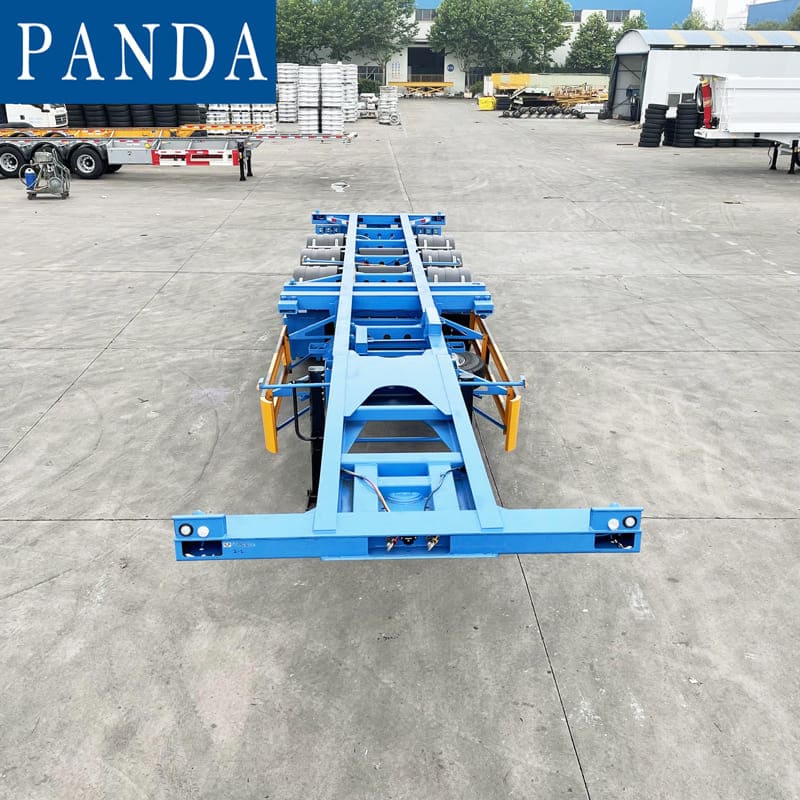

40Ft gooseneck container chassis images


40ft gooseneck chassis trailers for sale


40 ft gooseneck chassis trailers for sale


40ft gooseneck chassis for sale

Get An Instant Quotation Now

Video of 40′ gooseneck container chassis

40Ft gooseneck container chassis specification

Dimension 12500*2500*1550mm
Height 1550mm
Width 2500mm
Weight 5600Kg
Main Beam “I” Section 500mm hieght Q345/T700 matirial
Twist Lock 12/14 set ISO Standard
Suspension Mechanical / Air / Bogie
Axle 2/3/4 axles BPW/FUWA/PDME etc
Rim 8/12/16 pieces 9.0-22.5 Steel/Aluminum
Tire 8/12/16 pieces 12R22.5 Bridgeston/Triangle/Linglong etc
Brake Valve WABCO
Brake Chamber 4/6/8 sets T30/30
Brake Pipe Nylon Wire Pipe
Landing Gear 28T Lifting JOST/YAHUA
Kingpin 2″(50mm)/3.5″(90mm) JOST Bolting Type
Lights 12v/24v LED Waterproof
Color Customized

Get An Instant Quotation Now

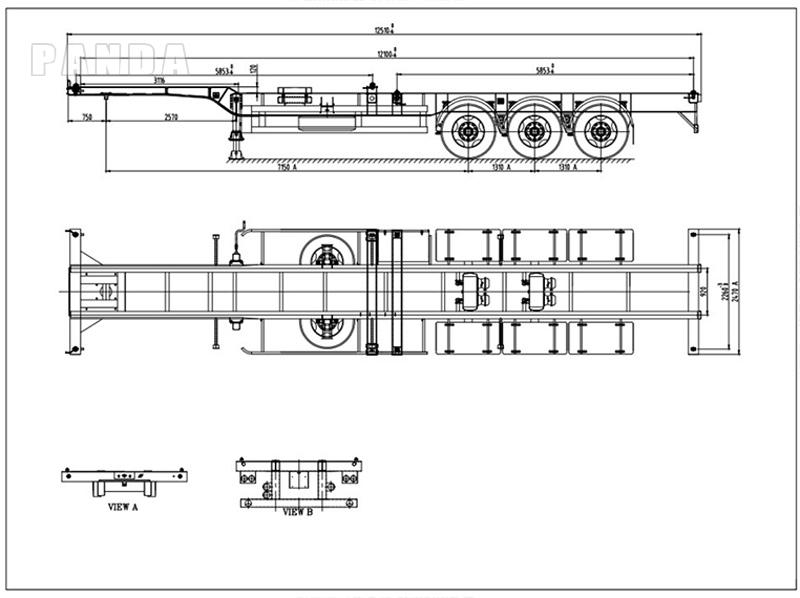

40ft gooseneck container chassis drawing



  • 1. The design of the gooseneck solves the problem of height limit well.
  • 2. Made from high-quality materials, it provides the necessary strength and durability to withstand heavy loads and challenging road conditions.
  • 3. The gooseneck, which is attached to the towing vehicle, distributes the weight of the cargo evenly, minimizing the risk of tipping or swaying.
  • 4. The anti-lock braking systems, trailer brakes, and reflective markers, all of which contribute to a safer driving experience.

Get An Instant Quotation Now


ISO tank gooseneck container chassis are more suitable for container transportation, cost saving and fast delivery.
40ft intermodal container chassis trailer transport

Panda Mech

Panda Mech is gooseneck chassis trailer manufacturer from China. We supply 40ft gooseneck container chassis trailers for sale. Panda Mech manufacturers have been successful in Southeast Asia, the Middle East, Africa and South America, such as the Philippines, Tanzania, etc…
