20 ft container chassis, as known as 20′ shipping container chassis trailer, 20 feet chassis, etc. Generally used for transport containers in ports, shipyards, routes, bridges, tunnels, and transfer stations, supporting multimodal transport logistics systems. 20ft long fit 4 to 8 sets container locks suitable for 10′ or 20′ container, etc.
The 20ft container chassis trailer is mainly used for medium and long-distance transportation and is generally used to transport containers. According to your needs, we provide 4 to 8 sets of locks.

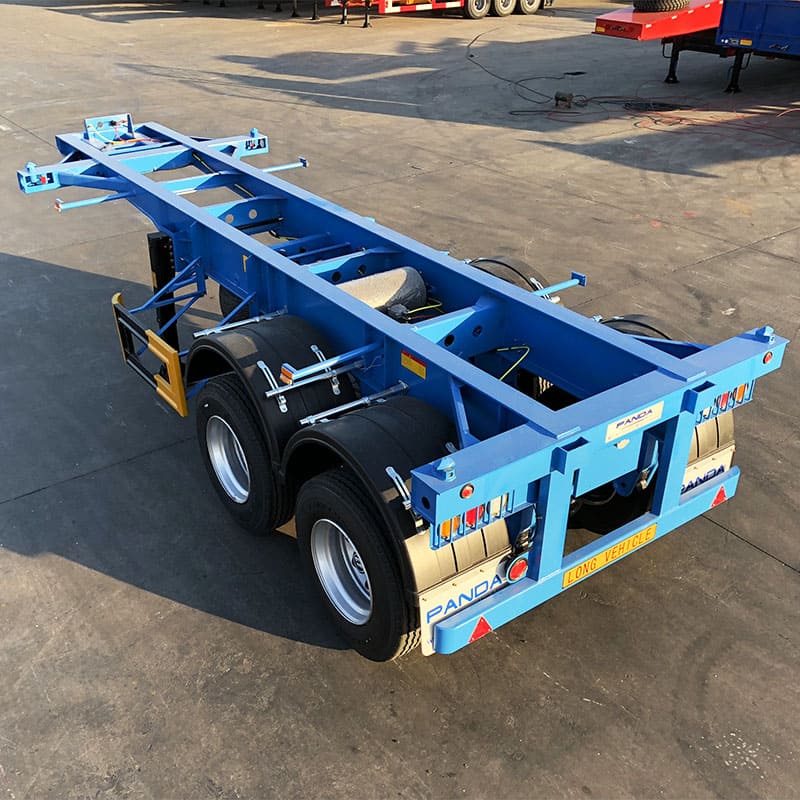

20 Ft container chassis images

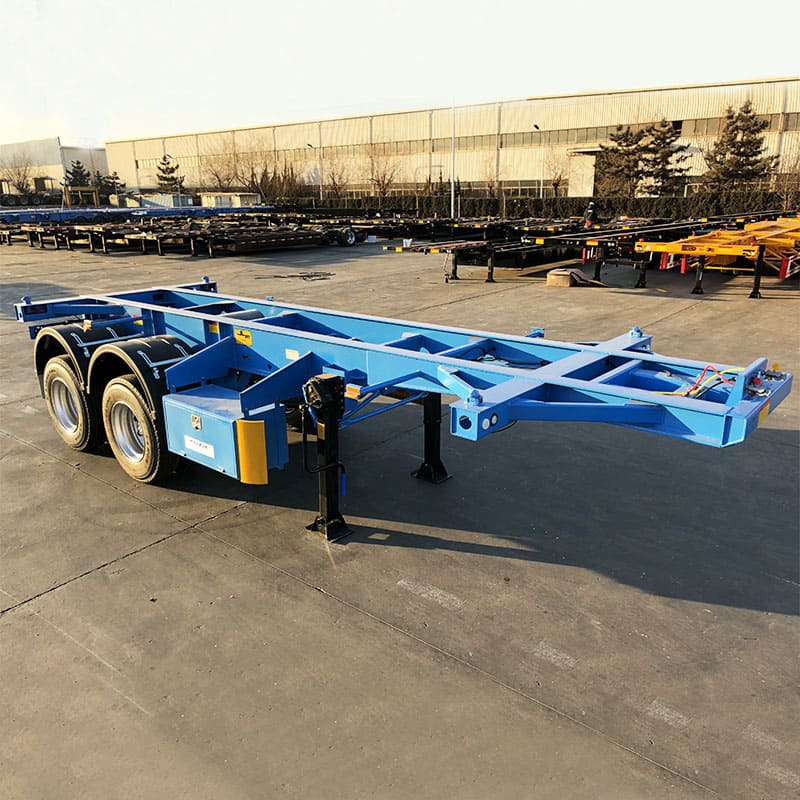

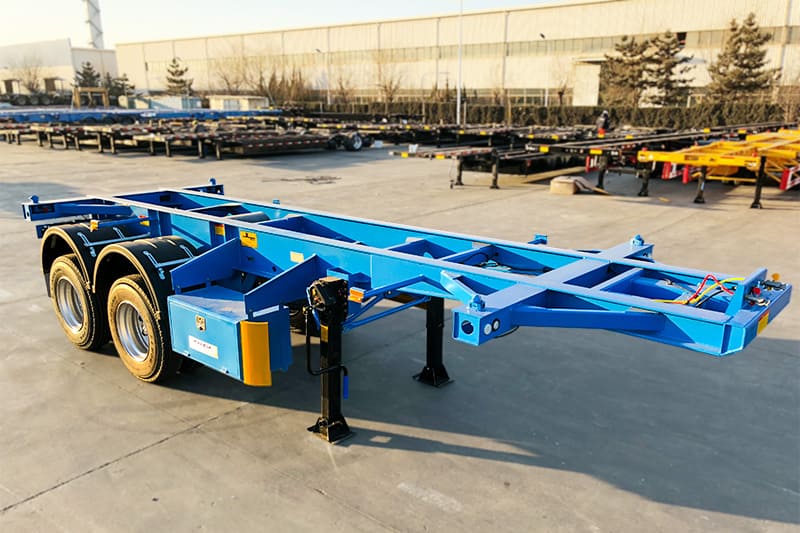

20 ft container transport semi trailers
20 Ft container chassis specification
|Weight||3700Kg, 8,000 lbs|
|Main Beam||“I” Section 500mm height Q345/T700 material|
|Twist-Lock||4/8 set ISO Standard|
|Suspension||Mechanical / Air / Bogie|
|Axle||2 axles BPW/FUWA/PDME etc|
|Rim||8/12 pieces 9.0-22.5 Steel/Aluminum|
|Tire||8/12 pieces 12R22.5 Bridgestone/Triangle/Linglong etc|
|Brake Chamber||4/6 sets, T30/30|
|Brake Pipe||Nylon Wire Pipe|
|Landing Gear||28T Lifting JOST/YAHUA|
|Kingpin||2″(50mm)/3.5″(90mm) JOST Bolting Type|
|Lights||12v/24v LED Waterproof|

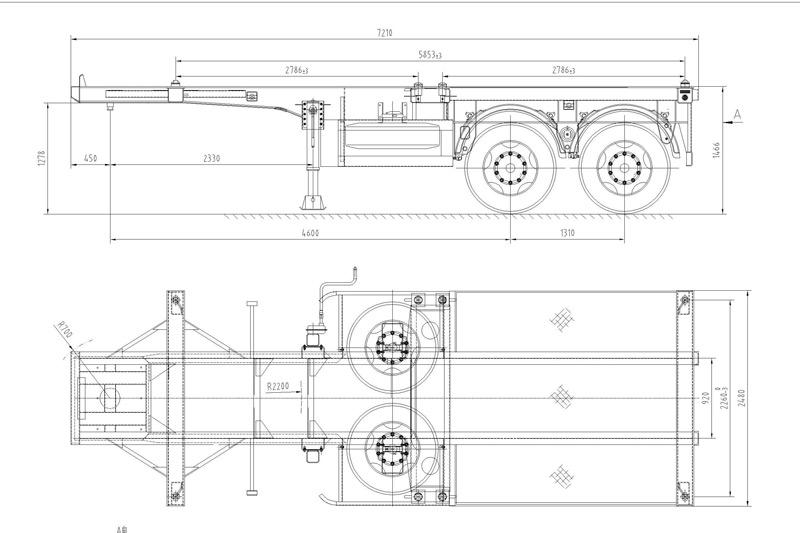

Drawing of 20ft container chassis
20ft container chassis drawing
- Reasonable design, uniform force, long service life.
- Light weight, increased payload/reduced fuel consumption, saving money and lifting the weight of transported cargo.
- Facilitates better maintenance and repair at a later stage, low cost.
ISO tank gooseneck container chassis are more suitable for container transportation, cost saving and fast delivery.
Panda Mech is a 20 ft container chassis manufacturer from China. We supply 20 ft container chassis for sale. Panda Mech manufacturers have been successful in Southeast Asia, the Middle East, Africa and South America, such as the Philippines, Tanzania, Nigeria, etc…
