40Ft Bomb Cart Trailer For Sale

Heavy Duty bomb cart chassis designed for transport around the terminal of twin ’20s, and one 40’ container, or 1 45 foot container. Retractable spacers keep the separation between the twin 20’s when loaded onto the chassis. Long tapered side guides help the crane operators position containers accurately while the corner-less style simplifies the task.

This heavy-duty 140,000 lb capacity bomb cart chassis trailer is designed to take the high-impact loads seen in a ship-to-shore port application. The 70,000 lb single point suspension and deep I-Beam frame have been engineered to handle the weight of the container payload and the spreader and head block.

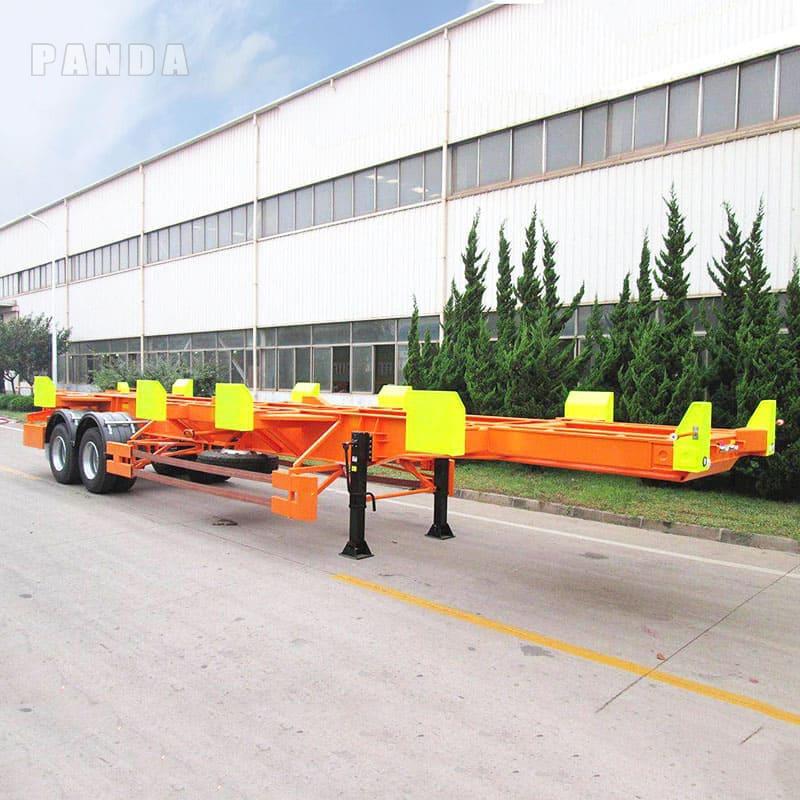

40Ft bomb cart trailer images

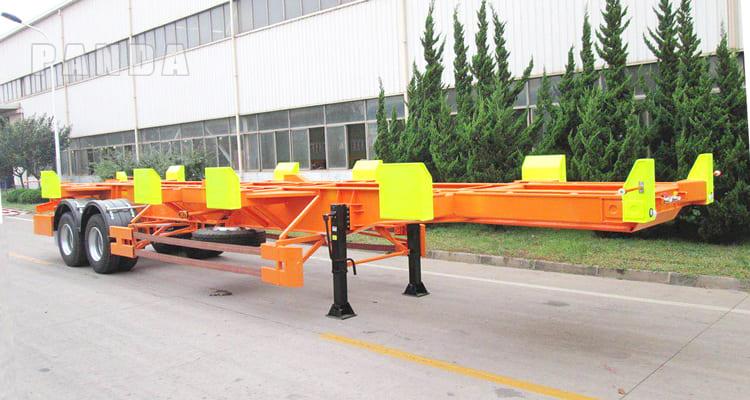

2 axle 40 ft bomb cart trailer for sale

40ft port chassis trailers for sale

Click For Solution

40Ft bomb cart chassis specifications

Dimension(mm): 12613*2810*1508mm

Loading capacity(ton): : 65T

Axles: 2 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 9 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

King Pin: 2.0 or 3.5 inch

Landing Gear: D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material: Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand)

Click For Detail

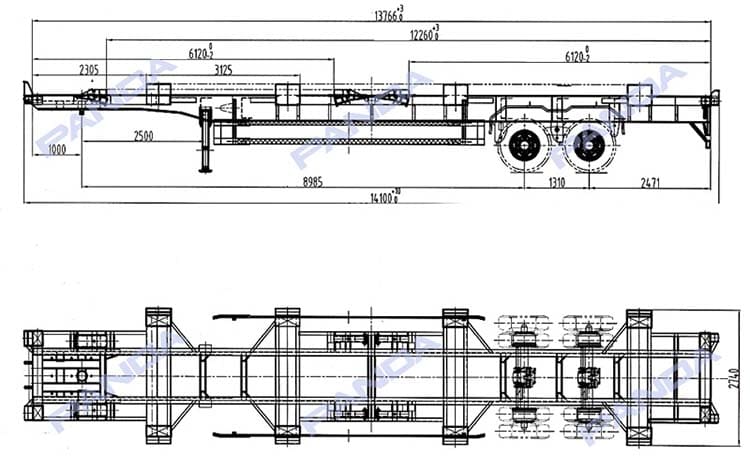

40 Feet bomb cart trailer drawing

40 footer bomb cart chassis drawing

Feature

1. Specially used for the transportation of various containers. Can be used repeatedly for a long time, with sufficient strength.
2. Fast loading and unloading is possible.
3. Rapid container transportation at the terminal improves efficiency.

Get An Instant Quotation Now

Panda Mech

Panda Mech is a 40ft bomb cart chassis trailer manufacturer from China. We supply 40ft/45′ bomb cart trailers for sale. PANDA MECH manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines, Tanzania, etc…
